RANCHO RS9000XL FRONT SHOCKS - RA RODEO -RC COLORADO - ISUZU DMAX

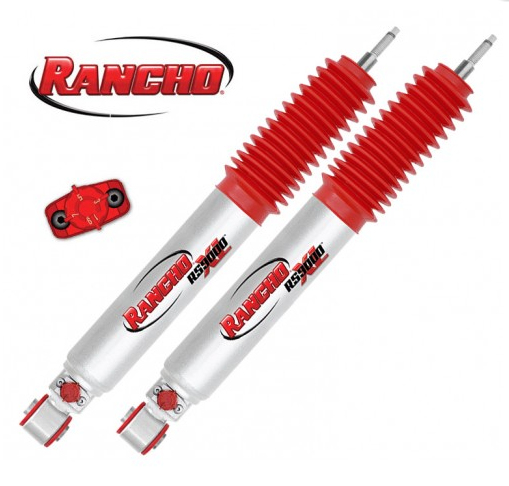

Rancho RS9000XL Adjustable Front Shocks

Upgrade your suspension with the Rancho RS9000XL Adjustable Front Shocks, designed to deliver improved ride comfort, handling and performance both on and off-road.

The Rancho RS9000XL features a 9-position adjustable damping system, allowing drivers to fine-tune their suspension to suit different driving conditions, vehicle loads and personal preferences.

With an easy-to-access adjustment dial located at the base of each shock absorber, compression and rebound damping characteristics can be adjusted while the shocks remain fitted to the vehicle.

Important Suspension Information

Front shock absorber travel on these vehicles is limited by the factory Independent Front Suspension (IFS) design and its associated components.

These shocks are suitable for vehicles with a 2–3 inch suspension lift, however, increasing the vehicle's stationary ride height does not increase the available suspension travel.

The shocks are designed to utilise the available suspension travel, including on vehicles fitted with supporting modifications such as ball joint flips, spacers and differential drops.

Key Features & Benefits

• 9-Position Adjustable Damping: Rancho's patented adjustment system allows you to customise your ride for on-road comfort, off-road performance and everything in between.

• 15-Stage Velocity-Sensitive Valving: Designed to improve traction, stability and vehicle control across varying driving conditions.

• Advanced Tri-Tube Construction: Delivers consistent performance across a wide range of loads, temperatures and terrain.

• Premium Internal Components: Micro-polished cylinder walls and glass-filled Teflon seals help improve durability, minimise friction and manage heat.

• Optimised Compression & Rebound: Softer compression damping compared to rebound damping provides a balance of ride comfort and controlled suspension movement.

• Proven Suspension Technology: Manufactured by Rancho, a trusted name in 4WD suspension with over 55 years of industry experience.

Package Includes

• 2 x Rancho RS9000XL Adjustable Front Shock Absorbers

Shock Specifications:

• Extended Length: 382mm

• Compressed Length: 269mm

Longer Travel Option – 425mm

A longer 425mm extended-length shock absorber option is also available. However, Modified Explorer does not recommend this option due to the increased risk of suspension and driveline damage.

The additional shock extension can place excessive stress on suspension and steering components, particularly at full droop. This increases the likelihood of premature wear or damage to components such as CV joints, CV shafts and steering arms, potentially resulting in costly repairs or component failure.

For this reason, we recommend the standard 382mm extended-length option to maintain more appropriate suspension geometry and reduce unnecessary stress on associated components.

Vehicle Compatibility

• Holden Rodeo RA: 2003–2006

• Holden Rodeo RA7: 2007–2008

• Holden Colorado RC: 2008–2012

• Isuzu D-Max: 2008–2012

• Holden Jackaroo: 1992 onwards

• Great Wall V200

Please Note: Vehicle compatibility and suspension requirements should be confirmed prior to purchase, particularly where aftermarket suspension modifications have been installed.

Warranty: 3 Years / Unlimited Kilometres
