MUNJI - REAR COMPOSITE INNER GUARD REPLACEMENTS - RC COLORADO, EARLY D-MAX, RA7 RODEO AND RA RODEO

What is this?

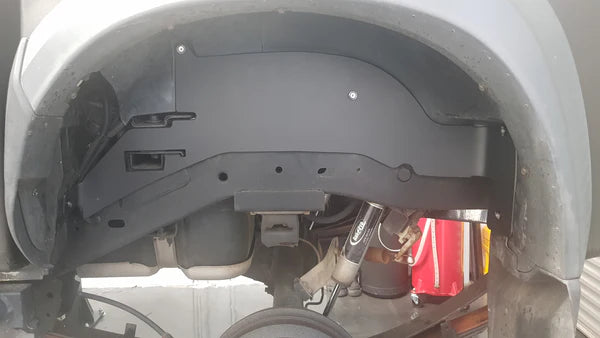

A pair of Munji Reinforced Inner Guards to cover up the join in the plastic inner guard at the rear (tub only) that is known to open and tear. Also to close up the gap caused by a 1" / 2" body lift.

It makes the body lift more discreet and provides a neater overall appearance of the tub lift.

To save on deformation during post, inner guards will be sent out flat and will require two bends. These bends can easily be done by hand, if bending by hand, a hot air gun can make it easier to bend.

All Munji Inner Guards and Mud Guards are made to order in our warehouse. Please allow up to three weeks for production during regular processing times.

Construction

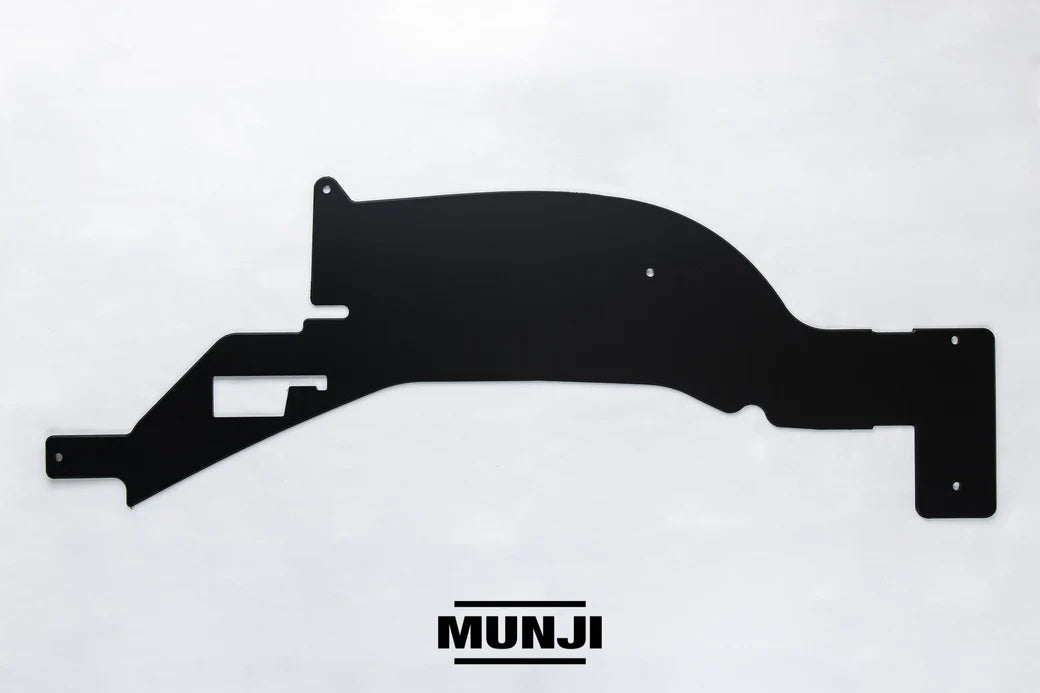

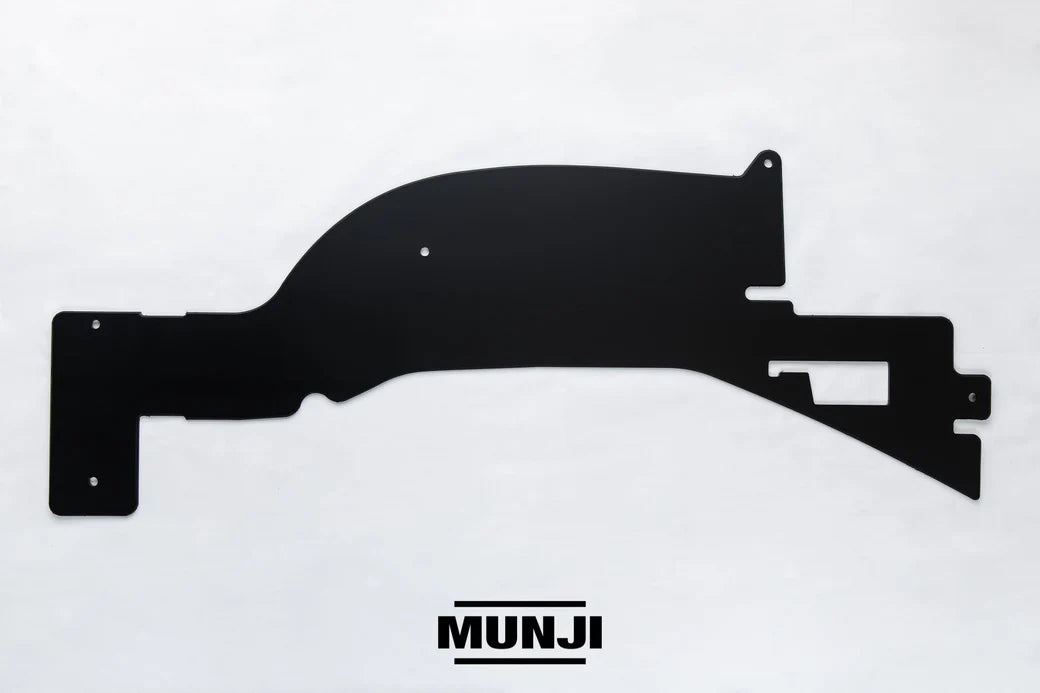

• Inner Guards are CNC'd out of High-density Polyethylene (HDPE).
• Black in colour to suit the "Original Look".
• This a UV stable material and will not deteriorate in the sun.
• HDPE is a thermoplastic, which means if for some reason it is out of shape you can simply leave the part out in the sun on a hot day and it will be easy to flatten out again.

All Munji Inner Guards and Mud Guards are made to order. Please allow up to three weeks for production during peak order periods.

Options Available

Heights

Two different heights are available for purchase:-

1. 1” Body Lift

2. 2” Body Lift

Hardware

The Inner Guards come with your chosen hardware, either:-

A. Bolts, washers and Rivnuts (please note this is the recommended mounting system, however, you will require a Rivnut crimper)

B. Bolts, washers and Rubber Thread Inserts

Option to upgrade to M6 JDM Style Munji washers.

What vehicles does this suit?

- RC Colorado - 2008 to 2012

- Early shape D-Max - 2007 to 2012

- RA7 Rodeo - 2007 to 2008

- RA Rodeo - 2003 to 2006

Installation

Tools required – Allan key / Drill

Optional tools required (depending on hardware selected) – Rivnut Crimper for rivnut hardware option

Installation Time - Approximately 30 minutes for initial install of Rivnuts

Difficulty –Do it yourself, basic tool knowledge required
