4JJ1 500hp Ceramic Pull Type Clutch Kit | BRC

BRC 500HP Pull-Type Clutch Kit – 4JJ1

Built for high-powered 4JJ1 applications, the BRC 500HP Pull-Type Clutch Kit is designed to handle serious torque and boost. Rated to support up to 500HP and 60 PSI of boost, this heavy-duty button clutch provides the holding capacity required for modified and high-performance diesel setups.

Designed specifically for earlier pull-type 4JJ1 clutch systems, this kit is a direct-fit performance upgrade for selected Isuzu D-Max, Holden Colorado and Holden Rodeo models.

Key Features

• Rated up to 500HP and 60 PSI of boost
• Heavy-duty button clutch disc for increased grip and torque transfer
• Performance pressure plate providing increased clamping force
• Pull-type design to suit earlier 4JJ1 applications
• Built for high-performance applications including upgraded turbo, injector and tuning setups
• Direct-fit replacement with no modification to the bellhousing or slave cylinder required

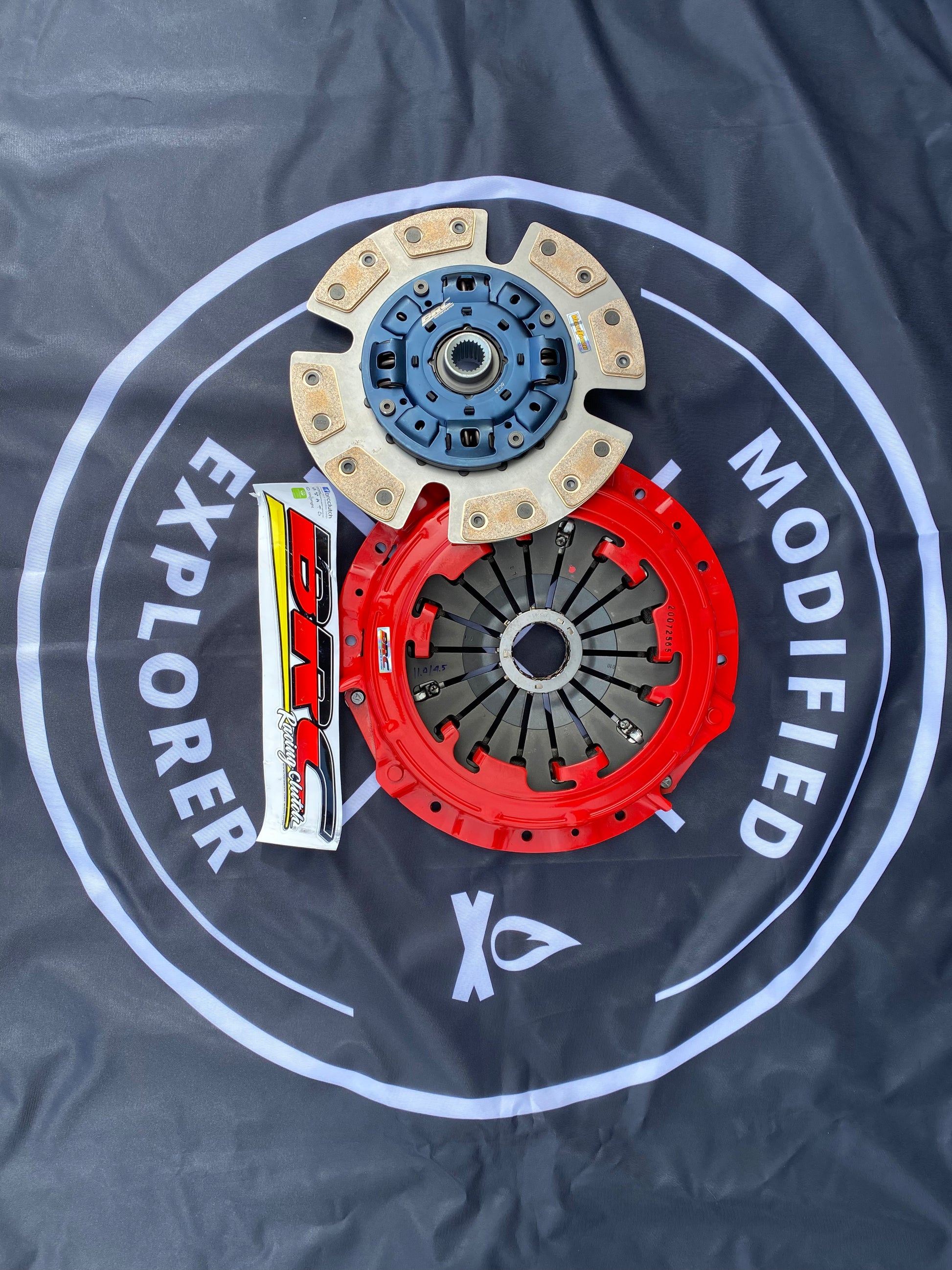

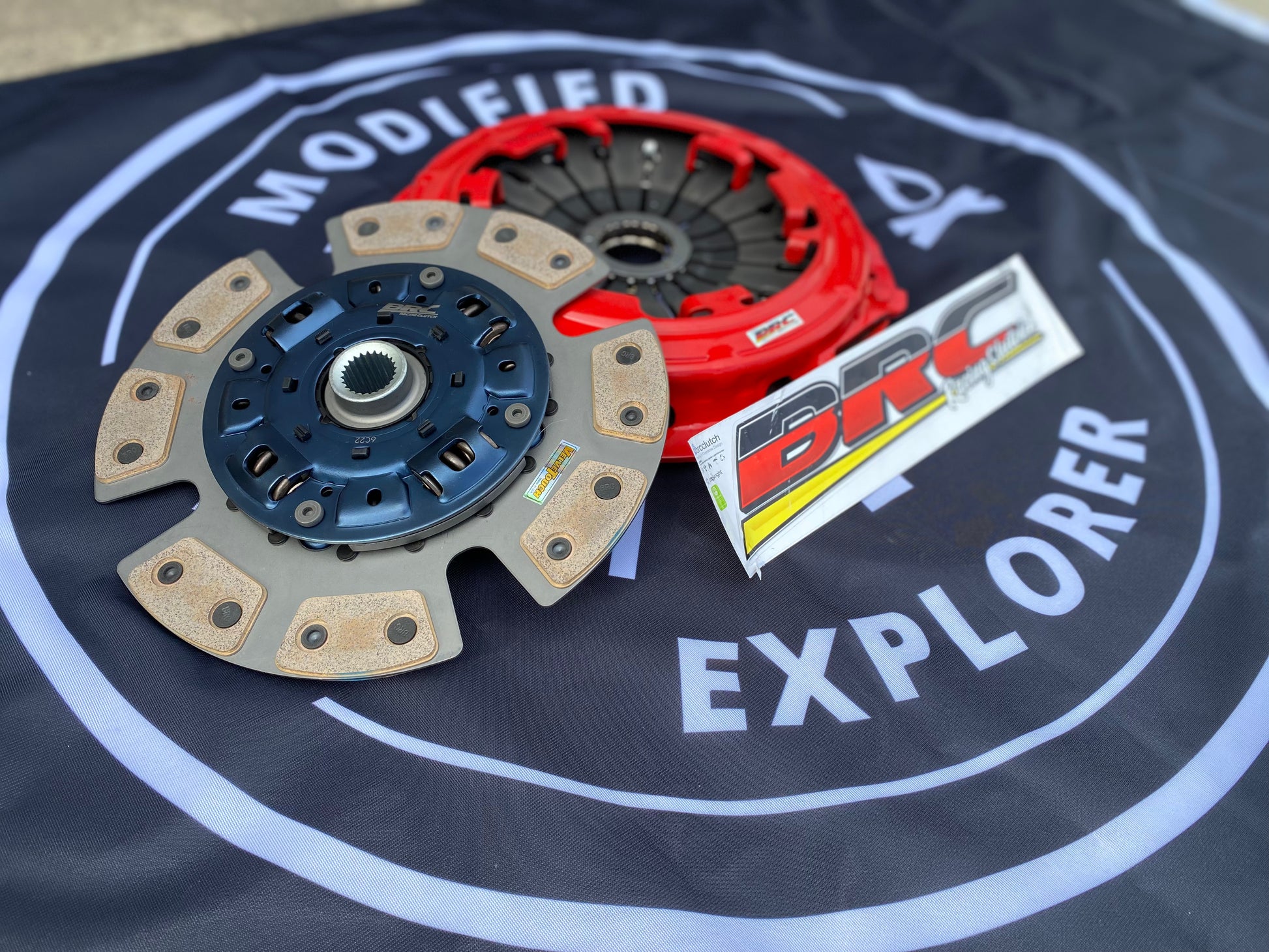

Kit Includes

• Button clutch disc
• Performance pressure plate
• Spigot bearing
• Heavy-duty throw-out bearing

Vehicle Fitment

Designed specifically for pull-type 4JJ1 applications, including:

• Isuzu D-Max – 2008–2012
• Holden Colorado – 2008–2012
• Holden Rodeo – 2006–2007

Please confirm your vehicle is fitted with a pull-type clutch system before ordering.

Installation Requirements

The flywheel must be machined prior to installation to provide a clean, flat mating surface and ensure correct clutch engagement and service life.

If the existing flywheel is damaged or unsuitable for machining, replacement or an upgraded billet flywheel may be required.

Driving Considerations

As a 500HP-rated button clutch, this kit is designed primarily for high-performance applications where maximum holding capacity is required. Button-style clutches provide more aggressive engagement than an organic clutch and may have a firmer, less forgiving feel during low-speed driving.

For vehicles primarily used for daily driving, touring or lower-powered setups up to 350HP, the BRC 350HP Pull-Type Clutch Kit may provide a more suitable balance between increased holding capacity and everyday drivability.

Built for Serious 4JJ1 Performance

For high-boost, high-torque 4JJ1 builds where a standard clutch simply won’t hold, the BRC 500HP Pull-Type Clutch Kit delivers the strength and grip needed to reliably transfer power to the drivetrain.

Ideal for heavily modified 4JJ1 setups running upgraded turbos, injectors, intercoolers and ECU tuning.
